Name: 5 inch hdmi touch screen with IPS 800x480 capacitive tocuh screen
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HCIG050V.CP1
Availability: InStock

Productdetails

Place of Origin: China

Merknaam: HETECH

Certificering: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HCIG050V.CP1

Betaling & het Verschepen Termijnen

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Krijg Beste Prijs

Productdetails

Productomschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5 inch HDMI touch screen, IPS capacitive touch display, 800x480 HDMI monitor


P/N:	HCIG050V.CP1	Size:	5''(IPS)
Display Type::	IPS	Resolution:	800*480
Outline dimension:	120.7075.8015.30mm	Active area:	108.00*64.80mm
Brightness:	250cd/㎡	Interface:	HDMI+USB
Operation Temp.:	0~60℃	Storage Temp.:	-20~70℃
Contrast ratio:	1000	Aspect rati16:9o:	16:9
Support system:	Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi	Application:	Endoscope camera system, digital otoscope and medical HD video recorder

P/N:	HCIG050V.CP1
Size:	5''(IPS)
Display Type::	IPS
Resolution:	800*480
Outline dimension:	120.7075.8015.30mm
Active area:	108.00*64.80mm
Brightness:	250cd/㎡
Interface:	HDMI+USB
Operation Temp.:	0~60℃
Storage Temp.:	-20~70℃
Contrast ratio:	1000
Aspect rati16:9o:	16:9
Support system:	Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi
Application:	Endoscope camera system, digital otoscope and medical HD video recorder

5 inch hdmi touch screen with IPS 800x480 capacitive tocuh screen

5 inch HDMI Touch Screen with IPS 800x480 Capacitive Touch Screen

Product Attributes

Attribute	Value
P/N	HCIG050V.CP1
Size	5''(IPS)
Display Type	IPS
Resolution	800*480
Outline dimension	120.7075.8015.30mm
Active area	108.00*64.80mm
Brightness	250cd/㎡
Interface	HDMI+USB
Operation Temp.	0~60℃
Storage Temp.	-20~70℃
Contrast ratio	1000
Aspect ratio	16:9
Support system	Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi
Application	Endoscope camera system, digital otoscope and medical HD video recorder

Product Description

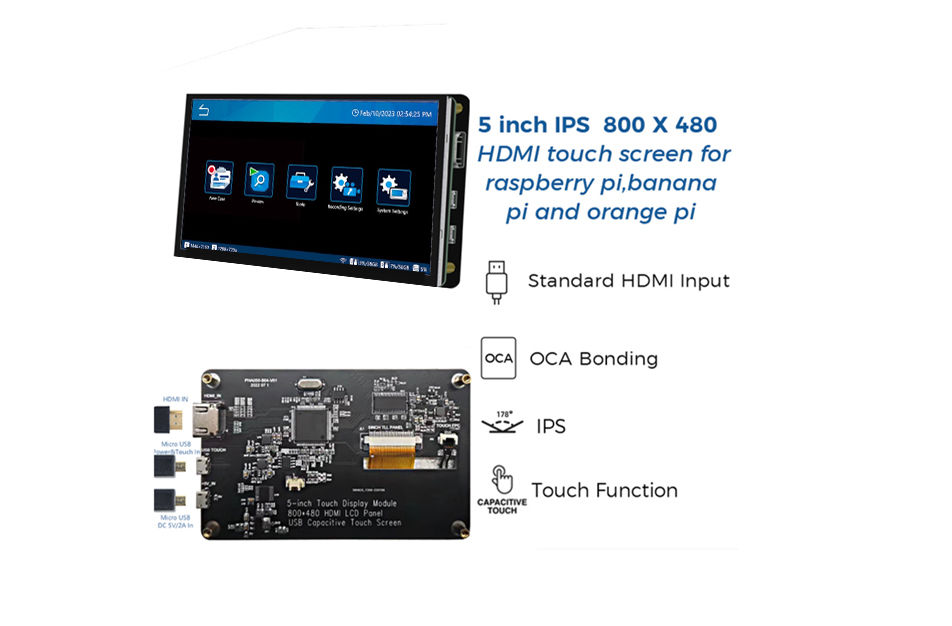

HCIG050V.CP1 is a 5-inch HDMI display engineered for precision and versatility. Featuring IPS technology and 800*480 resolution, this capacitive touch screen delivers crisp, vibrant visuals with a 1000:1 contrast ratio and 250 nits brightness. Users can enjoy consistent clarity from any angle with 80° wide viewing perspectives.

Designed for seamless integration with Raspberry Pi, Banana Pi, and Orange Pi, its compact active area of 108mm*64.8mm and outline dimension of 120.7mm*75.8mm*15.3mm fit space-sensitive setups. Built to endure, it operates flawlessly in 0~60℃ environments. Also, this display is perfect for medical applications like endoscope camera systems, digital otoscopes, or HD video recorder.

General Specification

P/N	HCIG050V.CP1
Size	5inch
Display type	IPS
Resolution	800*480
Outline Dimension(mm)	120.7075.8015.30mm
Active Area(mm)	108.00*64.80mm
Brightness(cd/m²)	250
Interface	HDMI+Micro USB
Voltage	5V 2A
Operation Temperature	0~60℃
Storge Temperature	-20~70℃
Aspect ratio	16:9
Contrast ratio	1000
Application	Endoscope camera system, digital otoscope and medical HD video recorder

How to Use the HDMI Touch Screen

Product Drawings

How to Connect with Motherboard Like Raspberry Pi

HDMI Display Series

Warm reminds: if models listed below can't meet your requirements, customization can be made according to your specific requirements but it is not limited to LCM, RTP, CTP, driver board, etc.

No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	5''	HCIG050V.CP	IPS	800*480	120.7075.8015.30MM	108.00*64.80mm	HDMI+ Micro USB	1000	250	0~60℃	-20~70℃
2	7"	HCTG070V.P01	TN	800*480	164.90100.0015mm	154.08*85.92mm	HDMI+ Micro USB	500	250	0~60℃	0~70℃
3	7"	HCIK070V.CC	IPS	1024*600	164.90100.0015mm	154.21*85.92mm	Mini HDMI +TypeC	800	250	0~60℃	0~70℃
4	8"	HCTG080V.CP1	TN	800*480	192.80116.9022.00mm	176.64*99.36mm	Micro HDMI +USB	500	500	0~60℃	0~70℃
5	9"	HCIK090V.CB	IPS	1024*600	211.10126.5019.00mm	196.60*114.15mm	MINI HDMI +TYPE C	800	500	0~60℃	0~70℃
6	10.1"	HCIK101V.CC	IPS	1024*600	235.00143.007.30mm	222.72*125.28mm	HDMI+ Micro USB	800	200	0~60℃	0~70℃
7	10.1"	HCIK101V.CD	IPS	1024*600	230.7150.322.8mm	216.96*135.60mm	HDMI+TypeC	800	400	0~60℃	0~70℃
8	11.6"	HCIX116V.CP2	IPS	1366*768	265157.352.7mm	256.16*144mm	HDMI+TypeC	220	0~50℃	-15~55℃

Customization

FAQ

Q1. Can I have a sample order for LCD Display

A: Yes, we welcome sample order to test and check quality

Q2. What about the lead time?

A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx.

Q4. How to proceed an order for LCD Display?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides damage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
